Sensitive Signal Indication (SSI) Relays

Phoenix Contact Sensitive Signal Indication (SSI) Relays are part of the PLC-INTERFACE relay family that houses an internal amplifier circuit and an auxiliary supply. This ensures reliable switching coil actuation even with weak input signals. The SSI relays can be used for 5V, 12V, and 24V DC input signals with less than 1mA control current. The narrow 6.2mm design of these relays allows for space-saving on the DIN rail and the relays are available in screw or push-in connection technology.

Resultados: 6
Seleccionar Imagen N.° de pieza
 Fabricante:
Descripción Hoja de datos Disponibilidad Precio: (CRC) Filtre los resultados en la tabla por precio unitario en función de su cantidad.
Cantidad RoHS Modelo ECAD Estilo de montaje
Producto
Tipo
Terminación del contacto
Forma de contacto del relé
Régimen de corriente del contacto
Terminación de la bobina
Tipo de bobina
Voltaje de la bobina
Resistencia de la bobina
Corriente de bobina
Voltaje de conmutación
Material del contacto
Clasificación IP
Longitud
Ancho
Altura

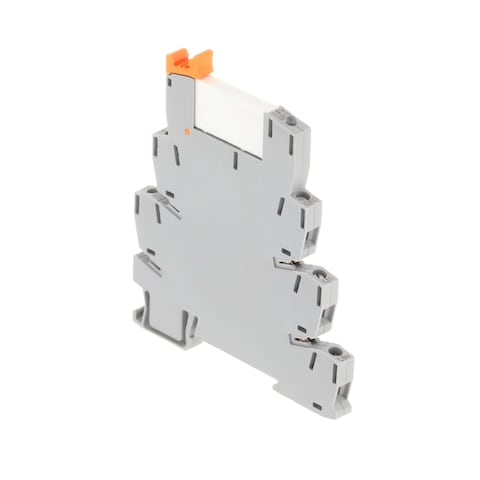

Phoenix Contact Relés industriales PLC-RPT- 5DC/1/SSI
Hoja de datos
53En existencias
Min.: 1
Mult.: 1
DIN Rail Mount Relay Modules General Purpose Relay Screw 1 Form A (SPST-NO) 6 A Screw Non-Latching 5 VDC 5 kOhms 1 mA 250 VAC, 250 VDC Silver Tin Oxide (AgSnO2) IP20, IP54 94 mm 6.2 mm 80 mm


Phoenix Contact Relés industriales PLC-RSC- 5DC/1/SSI
Hoja de datos
24En existencias
20Se espera el 27/3/2026
Min.: 1
Mult.: 1
DIN Rail Mount Relay Modules General Purpose Relay Screw 1 Form A (SPST-NO) 6 A Screw Non-Latching 5 VDC 5 kOhms 1 mA 250 VAC, 250 VDC Silver Tin Oxide (AgSnO2) IP20, IP54 94 mm 6.2 mm 80 mm
Phoenix Contact Relés industriales PLC-RPT-24DC/1/SSI
Hoja de datos
5En existencias
Min.: 1
Mult.: 1
DIN Rail Mount Relay Modules General Purpose Relay Screw 1 Form A (SPST-NO) 6 A Screw Non-Latching 24 VDC 24 kOhms 1 mA 250 VAC, 250 VDC Silver Tin Oxide (AgSnO2) IP20, IP54 94 mm 6.2 mm 80 mm

Phoenix Contact Relés industriales PLC-RSC-24DC/1/SSI
Hoja de datos
40Se espera el 23/3/2026
Min.: 1
Mult.: 1
DIN Rail Mount Relay Modules General Purpose Relay Screw 1 Form A (SPST-NO) 6 A Screw Non-Latching 24 VDC 24 kOhms 1 mA 250 VAC, 250 VDC Silver Tin Oxide (AgSnO2) IP20, IP54 94 mm 6.2 mm 80 mm
Phoenix Contact Relés industriales PLC-RPT-12DC/1/SSI
Hoja de datos
10Se espera el 16/3/2026
Min.: 1
Mult.: 1
DIN Rail Mount Relay Modules General Purpose Relay Screw 1 Form A (SPST-NO) 6 A Screw Non-Latching 12 VDC 12 kOhms 1 mA 250 VAC, 250 VDC Silver Tin Oxide (AgSnO2) IP20, IP54 94 mm 6.2 mm 80 mm


Phoenix Contact Relés industriales PLC-INTERFACE consisting of basic terminal block with screw connection and plug-in miniature relay with internal amplifier circuit and an appropriate auxiliary supply for weak signal sources 1 N/O contact 12 V DC nominal input voltage
Hoja de datos
Plazo de entrega no en existencias 11 Semanas
Min.: 1
Mult.: 1
DIN Rail Mount Relay Modules General Purpose Relay Screw 1 Form A (SPST-NO) 6 A Screw Non-Latching 12 VDC 12 kOhms 1 mA 250 VAC, 250 VDC Silver Tin Oxide (AgSnO2) IP20, IP54 94 mm 6.2 mm 80 mm
