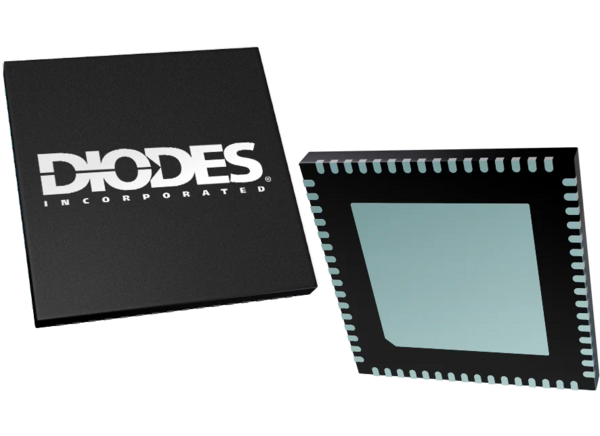

Diodes Incorporated PI6CB332016A 16-Output Fanout Clock Buffer

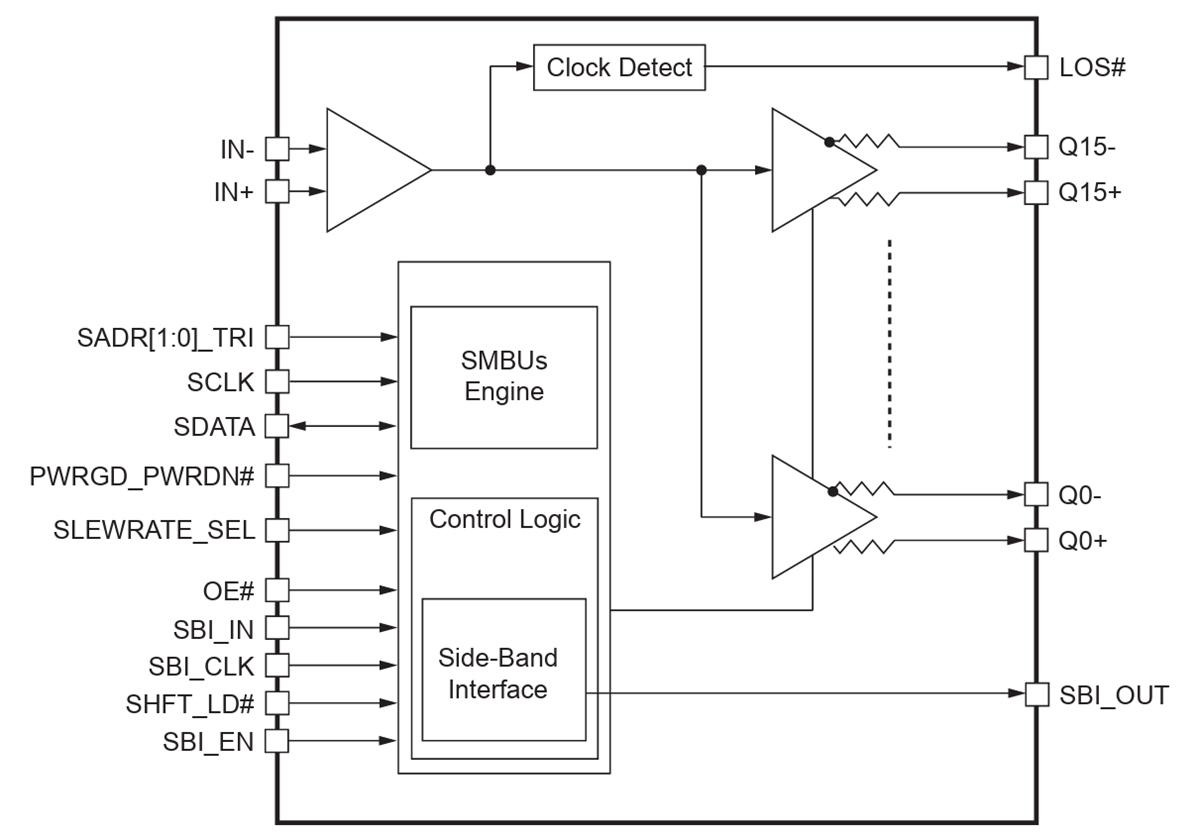

Diodes Incorporated PI6CB332016A 16-Output Low-Power Fanout Clock Buffer is designed as a low-power PCIe^® 5.0/6.0 solution. The device utilizes a reference input to fanout 16 low-power differential HCSL outputs up to 400MHz, with on-chip terminations for 85Ω output impedance.

The Diodes PI6CB332016A Clock Buffer supplies an individual OE pin for each output, allowing for easier power management. Furthermore, the device supports Power Down Tolerant (PDT), automatic output clock parking upon loss of input clock, and flexible startup sequencing features.

Features

16 low-power HCSL outputs with on-chip termination
85Ω output impedance
Individual output enable
Supports I/O power down tolerant
Flexible startup power sequencing
Automatic output clock parking upon loss of input clock
Up to 9 selectable SMBus addresses
Supports SBI OE# interface
Differential output-to-output skew <50ps

Additive phase jitter
- PCIe 5.0 - typical 5fs RMS
- PCIe 6.0 - typical 3fs RMS
- DB2000QL - typical 10fs RMS
3V supply voltage
-40°C to +105°C temperature range
64-Pin, TQFN 9mm x 9mm (ZD) packaging (Pb-free and green)
Totally lead-free and fully RoHS compliant
Halogen and antimony-free “green” device

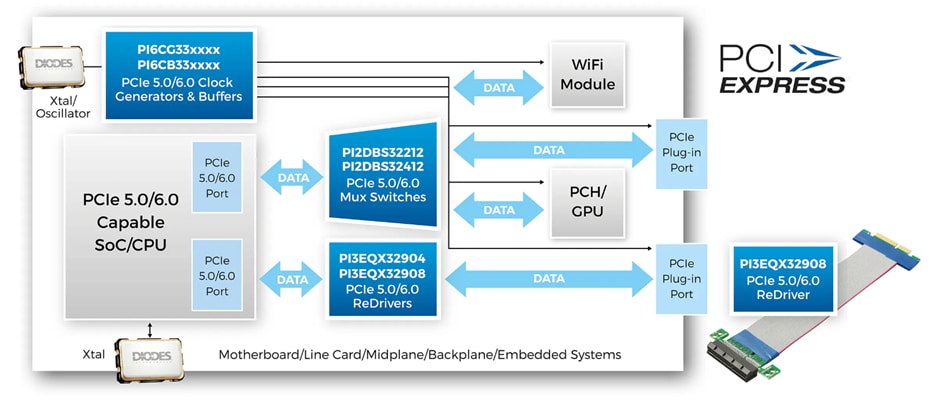

PCI Express 6.0

The PCI Express 6.0 interface allows for 64Gb/s of data transfer in a single channel. With the higher data rate come tighter timing requirements to ensure lower error rates.
