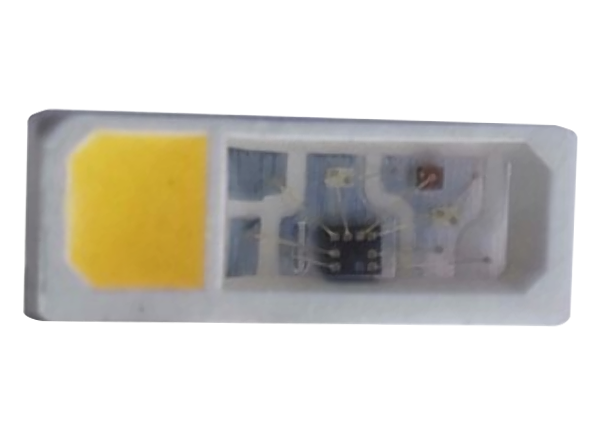

Inolux IN-PI4818QAS5R5G5BPW RGBW LED with Integrated IC
Inolux IN-PI4818QAS5R5G5BPW RGBW LED with Integrated Circuit (IC) is a side view SMD type LED that is available in 4.8mm x 1.8mm x 1.6mm dimensions. This LED offers a built-in IC with high precision of constant current and internal RGBW chips spectral processing in advance. The RGBW LED features single-line data transmission, 800kbps data transfer rate at 30fps, cascading enhancement technology, and SA-I anti-interference patent technology for single line data transmission. This LED operates from 3.5V to 5.5V logic supply voltage range (VDD), -45°C to 85°C operating temperature range (TOPT) and 1W power rating. The RGBW LED is used in applications such as full color LED string lights, LED full-color modules, LED guardrail tubes, and LED point lights.
Features
- 4818 with integrated high quality constant current IC and RGBW LED chip
- Single line data transmission (return to zero code)
- Specific shaping transmit technology:
- The number of LED stacked is not restricted
- Cascading enhancement technology:
- Any 2 LED spacing can be up to 10 meters
- 800kbps data transfer rate at 30fps
- 256 grey level adjustments through RGB output port PWM control
- SA-I anti-interference patent technology:
- Single-line data transmission
- Built-in power supply reverse connects protection module
- 4.8mm x 1.8mm x 1.6mm dimensions
Applications
- Full color LED string light
- LED full-color module
- LED guardrail tube
- LED scene lighting
- LED point light
- LED pixel screen
- LED shaped screen
Specifications
- 3.5V to 5.5V logic supply voltage range (VDD)
- -45°C to 85°C operating temperature range (TOPT)
- 1W power rating
- 120mcd, 320mcd, 80mcd, and 1050mcd luminous intensity
- 624nm, 520nm, and 470nm wavelength
- 5500K color temperature

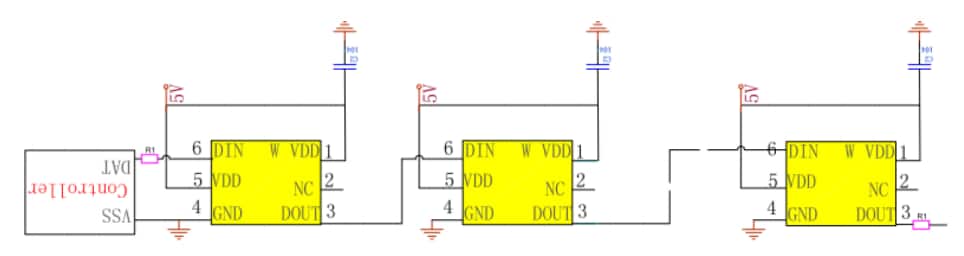

Typical Application Circuit

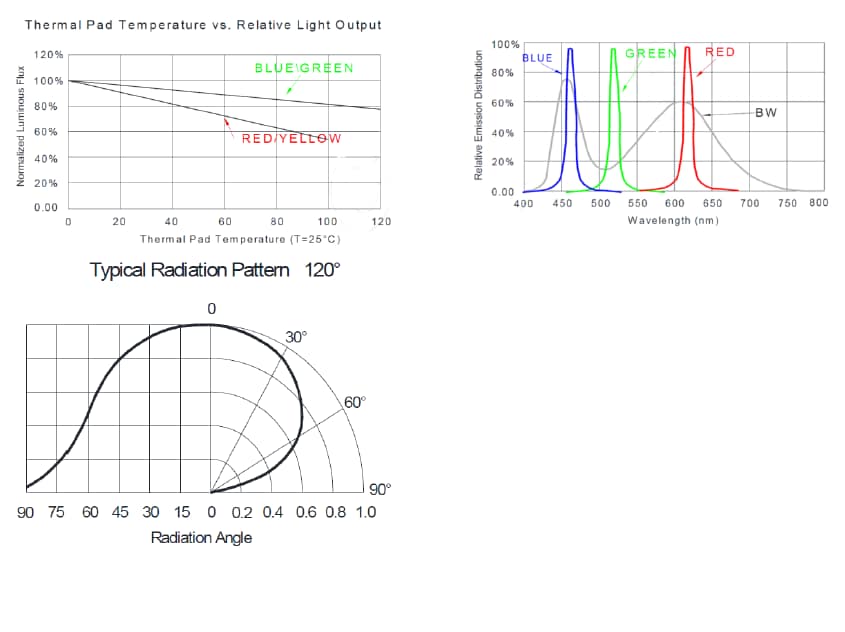

LED Performance Graph
