NXP Semiconductors FRDM-STBI-NPM8 Sensor Evaluation Board
NXP Semiconductors FRDM-STBI-NPM8 Sensor Evaluation Board is designed with essential headers, jumpers, and signal test points to facilitate the quick evaluation of the NPM8 pressure sensor. It is compatible with Arduino® UNO headers, allowing it to be hosted on any compatible board.
The recommended hosting microcontroller unit (MCU) board for the NPM8 shield is the FRDM-MCXW71, which allows it to be mounted on top. The FRDM-MCXW71 supports data and command transfer via serial peripheral interface (SPI) transactions. With integrated 2.4GHz wireless connectivity, the FRDM-MCXW71 is ideal for enabling sensor connectivity. This setup requires a PC and the accompanying software package (demo) available from NXP.
The NXP Semiconductors FRDM-STBI-NPM8 can also operate in standalone mode, where the NPM8 sensor acts as a host to external devices, sensors, or peripherals through the Arduino expansion headers. Additionally, it features a dedicated interface that routes universal asynchronous receiver-transmitter (UART) signals to support the IN100 NanoBeacon BLUETOOTH® Low Energy (LE) development board from InPlay.
Additionally, the FRDM-STBI-NPM8 is well-suited for industrial applications that require pressure sensors with high-pressure range capabilities, such as industrial pneumatic tools.
Features
- Demonstration/custom kits
- Enables quick evaluation of demo projects and serves as a solid platform for development
- Graph visualization, register-level analysis, real-time interrupt evaluation, and data logging with the FreeMASTER sensor tool
- Supports InPlay Bluetooth low energy (LE) beacon by hosting the IN100 NanoBeacon
- Sensor shield board
- Compatible with Arduino and most NXP MCU development boards
- The FRDM-MCXW71 board is recommended as a starting point
- Supports inter-integrated circuit (I2C), UART, and SPI communication interface with a host MCU
Applications
- Industrial
- Air tools
- Industrial air compressors
- Industrial pneumatic tools (drills)
- Paint sprayers
- Rachet wrenches
- Water cut tools
- Consumer
- Air Conditioning (AC)
- Major home appliances
- Small and medium appliances
Kit Contents
- FRDM-STBI-NPM8 shield board compatible with Arduino Uno headers
- 10x jumpers for hardware configuration

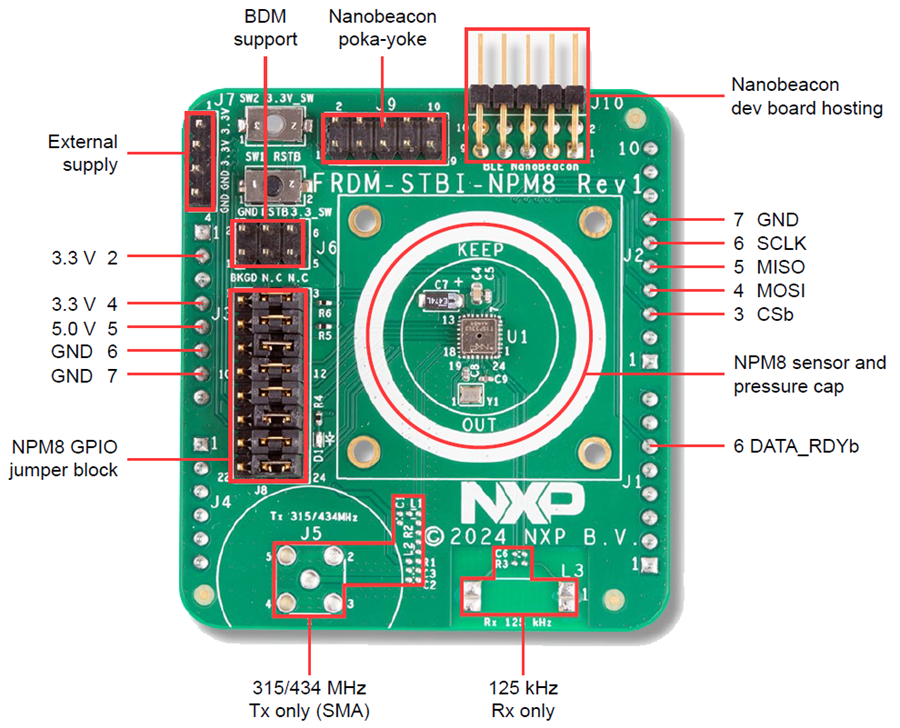

Board Features

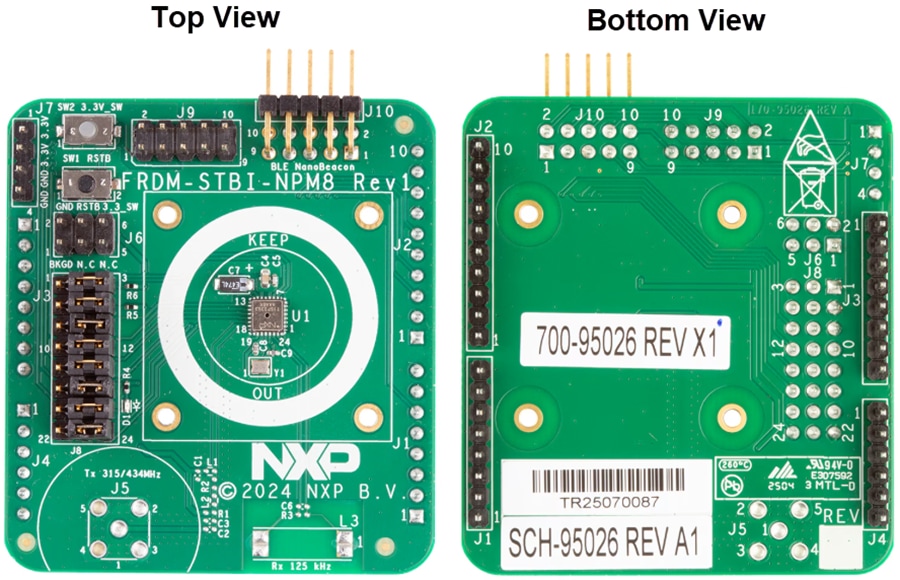

Board Layout
Related Product
InPlay IN100 Ultra-Low Power BLUETOOTH® Beacon SoCs
Designed for BLUETOOTH® Low Energy beacons in the 2.4GHz ISM band and a proprietary beacon mode.
Development Tool
NXP Semiconductors Placa de desarrollo FRDM-MCXW71
Ofrece la creación rápida de prototipos y la evaluación sencilla del MCU inalámbrico MCXW71.
