Omron Industrial Automation D4B-N Safety Limit Switches
Omron Industrial Automation D4B-N Safety Limit Switches are robust safety limit switches with metal housing. D4B-N Safety Limit Switches feature slow-action and snap-action contacts and a direct opening mechanism to enable opening contacts when faults occur. These Omron switches ensure the safety of lever settings with a mechanism that engages a gear between the operating position indicator plate and the lever. The D4B-N is also equipped with a mechanism that indicates the applicable operating zone and push-button switching to control left and right motion.
Features
- Direct opening mechanism (NC contacts only) added to enable opening contacts when faults occur, such as fused contacts
- Safety of lever settings ensured using a mechanism that engages a gear between the operating position indicator plate and the lever
- A mechanism indicates the applicable operating zone and the push-button switching to control left and right motion
- Head seal structure strengthened to improve seal properties (IEC IP67 and NEMA 3, 4, 4X, 6P, and 13)
- -40°C to +80°C (standard type) operating temperature range
- UL, CSA, EN (TÜV), and CCC certified standards
Applications
- Safety monitoring
- Mechanical position detection
- Harsh industrial environments
- Automated manufacturing
- Elevator systems
Specifications
- Voltage rating
- 120VAC to 600VAC
- 8VDC to 250VDC
- 10A current rating
- IP67 degree of protection
- Durability
- Mechanical
- 30 million operations minimum (snap-action)
- 10 million operations minimum (slow-action)
- 500,000 electrical operations minimum, 10A resistive load at 250VAC
- Mechanical
- 1mm/s to 0.5m/s operating speed
- Operating frequency
- 120 operations/minute (mechanical)
- 30 operations/minute (electrical)
- 600V rated insulation voltage
- 50Hz/60Hz rated frequency

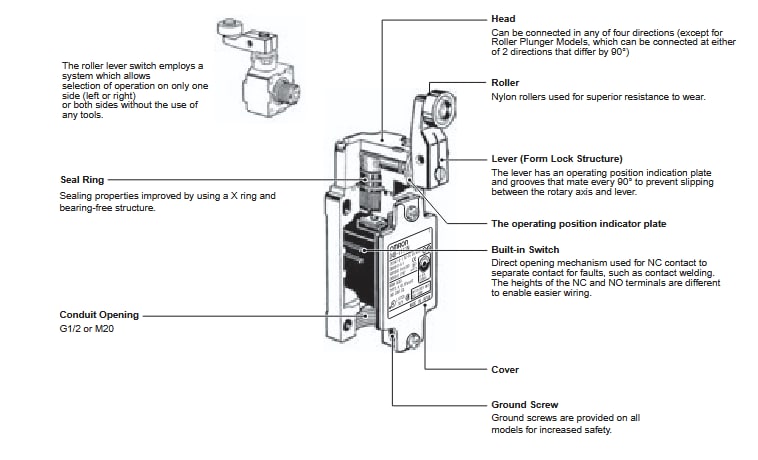

Structure
Direct Opening Mechanism
