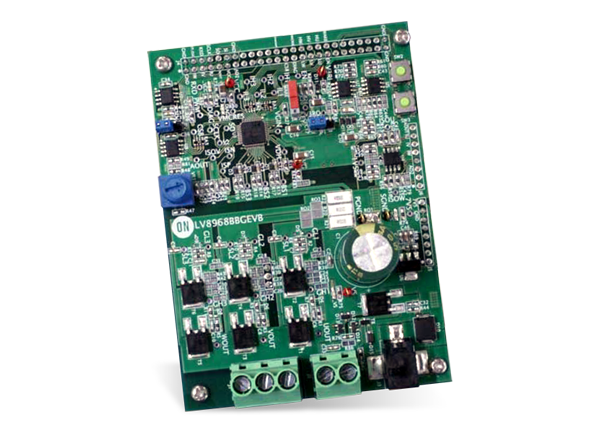

onsemi LV8968BB Evaluation Board

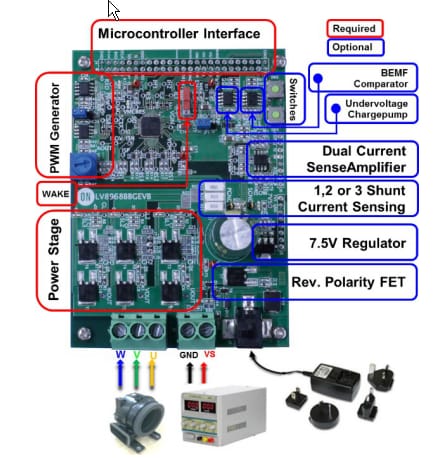

onsemi LV8968BB Evaluation Board provides a comprehensive platform to evaluate the LV8968BB Gate Driver functionalities for industrial and automotive applications. This evaluation board provides an interface to the microcontroller and a plug-in interface for Arduino DUE^®. This LV8968BB evaluation board is a general-purpose automotive 3-phase gate driver for 8V to 25V applications. This evaluation board comes with various optional peripheries that support motor control implementations from simple sensor-less BEMF commutation to complex field-oriented algorithms. The LV8968BB evaluation board can be used as a shield for an Arduino DUE board.
