Renesas Electronics S1JA Synergy Microcontrollers

Renesas Electronics S1JA Synergy Microcontrollers are based on ultra-low 48MHz Arm® Cortex®-M23 core and offer 256KB code flash memory. These MCUs feature a 32KB SRAM, Renesas Synergy™ Platform, and Capacitive Touch Sensing Unit (CTSU). In addition, the S1JA MCUs also offer 16-bit ADC, 24-bit sigma-delta ADC, 12-bit DAC, 8-bit DAC, and an operational amplifier. The S1JA MCUs operate with a maximum frequency of 48MHz and incorporate CAN, I2C, SPI, and USB interfaces. These MCUs integrate multiple series of software- and pin-compatible Arm®-based 32-bit cores that share a common set of Renesas peripherals. This facilitates design scalability and efficient platform-based development. The S1JA MCUs are available in QFN, LQFP, and BGA packages. These MCUs are well-suited for cost-sensitive and low-power applications.

Features

  • Up to 256KB code flash memory
  • 32KB SRAM
  • 16-bit ADC
  • 24-bit Sigma-Delta ADC
  • 12-bit DAC
  • 8-bit DAC
  • Operational Amplifier (OPAMP) with configurable switches
  • Security

Specifications

  • 1.6VCC to 5.5VCC operating voltage
  • Arm Cortex-M23 core
    • Armv8-M architecture
    • 48MHz maximum operating frequency
    • Arm Memory Protection Unit (Arm® MPU) with 8 regions
    • Debug and trace:
      • DWT, FPB, and CoreSight™ MTB-M23
    • SW-DP CoreSight debug port
  • Memory
    • Up to 256KB code flash memory
    • 8KB data flash memory (100,000 program/erase (P/E) cycles)
    • Up to 32KB SRAM
    • Flash Cache (FCACHE)
    • Memory Protection Unit (MPU)
    • Memory Mirror Function (MMF)
    • 128-bit unique ID
  • Connectivity
    • USB 2.0 Full-Speed (USBFS) module
    • 3 x Serial Communications Interface (SCI)
      • UART
      • Simple IIC
      • Simple SPI
    • 2 x Serial Peripheral Interface (SPI)
    • 2 x I2C bus interface (IIC)
    • Controller Area Network (CAN) module
  • Safety
    • Error Correction Code (ECC) in SRAM
    • SRAM parity error check
    • Flash area protection
    • ADC self-diagnosis function
    • Clock Frequency Accuracy Measurement Circuit (CAC)
    • Cyclic Redundancy Check (CRC) calculator
    • Data Operation Circuit (DOC)
    • Port Output Enable for GPT (POEG)
    • Independent Watchdog Timer (IWDT)
  • System and power management
    • Low power modes
    • Real-Time Clock (RTC)
    • Event Link Controller (ELC)
    • Data Transfer Controller (DTC)
    • Key Interrupt Function (KINT)
    • Power-on reset
    • Low Voltage Detection (LVD) with voltage settings
  • Security and encryption
    • AES128/256
    • True Random Number Generator (TRNG)
  • Human Machine Interface (HMI)
    • Capacitive Touch Sensing Unit (CTSU)
  • Multiple clock sources
  • General Purpose Input Output (GPIO) ports
    • Up to 49 input/output pins
  • Operating temperature and packages
    • Ta = -40°C to 85°C
      • 36-pin BGA (5mm× 5mm, 0.8mm pitch)
    • Ta = -40°C to 105°C
      • 64-pin LQFP (10mm × 10mm, 0.5mm pitch)
      • 32-pin LQFP (7mm × 7mm, 0.8mm pitch)
      • 48-pin QFN (7mm × 7mm, 0.5mm pitch)
      • 40-pin QFN (6mm × 6mm, 0.5mm pitch)

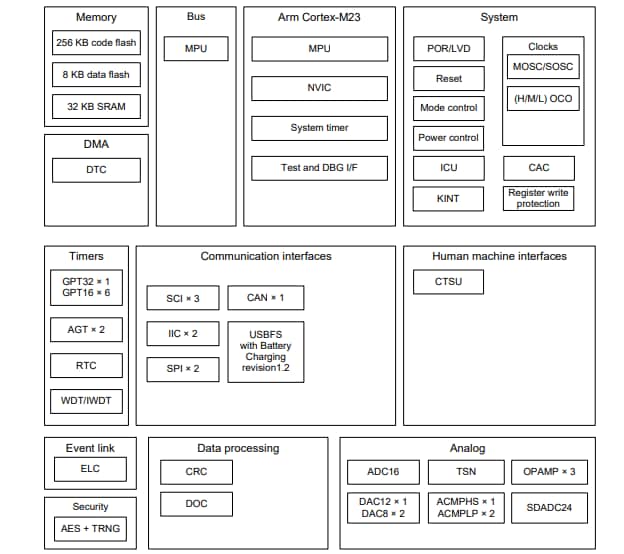

S1JA MCUs Block Diagram

Block Diagram - Renesas Electronics S1JA Synergy Microcontrollers

Learn More About

Associated Tool

Renesas Electronics TB-S1JA Synergy™ Target Board

Evaluates S1JA Synergy™ MCUs with the LQFP64 package.

Learn Moreacerca de Renesas Electronics TB-S1JA Synergy™ Target Board View Productsrelacionado con Renesas Electronics TB-S1JA Synergy™ Target Board

Additional Resources

View Results ( 14 ) Page
N.º de artículo Hoja de datos Descripción Paquete / Cubierta Tipo de interfaz Empaquetado Cantidad de canales del conversor de señal analógica a digital (ADC)
R7FS1JA783A01CFM#AA0 R7FS1JA783A01CFM#AA0 Hoja de datos Microcontroladores ARM - MCU SYNERGY MCU PLATFORM S1JA 256K 64LQFP LQFP-64 CAN, I2C, SPI, USB Tray 25 Channel
R7FS1JA782A01CBT#AC0 R7FS1JA782A01CBT#AC0 Hoja de datos Microcontroladores ARM - MCU SYNERGY MCU PLATFORM S1JA 256K 36BGA BGA-36 CAN, I2C, SCI, SPI, USBFS Tray 7 Channel
R7FS1JA783A01CFJ#AA0 R7FS1JA783A01CFJ#AA0 Hoja de datos Microcontroladores ARM - MCU SYNERGY MCU PLATFORM S1JA 256K 32LQFP LQFP-32 CAN, I2C, SCI, SPI Tray 7 Channel
R7FS1JA783A01CNE#AA0 Microcontroladores ARM - MCU SYNERGY MCU PLATFORM S1JA 128K 48QFN QFN-48 Tray
R7FS1JA783A01CNE#BA0 R7FS1JA783A01CNE#BA0 Hoja de datos Microcontroladores ARM - MCU SYNERGY MCU PLATFORM S1JA 128K 48QFN Tray
R7FS1JA783A01CNF#AA0 Microcontroladores ARM - MCU SYNERGY MCU PLATFORM S1JA 256K 40QFN QFN-40 Tray
R7FS1JA783A01CNF#BA0 R7FS1JA783A01CNF#BA0 Hoja de datos Microcontroladores ARM - MCU SYNERGY MCU PLATFORM S1JA 256K 40QFN Tray
R7FS1JA782A01CBT#BC0 R7FS1JA782A01CBT#BC0 Hoja de datos Microcontroladores ARM - MCU SYNERGY MCU PLATFORM S1JA 256K 36BGA Reel
R7FS1JA783A01CFJ#BA0 R7FS1JA783A01CFJ#BA0 Hoja de datos Microcontroladores ARM - MCU SYNERGY MCU PLATFORM S1JA 256K 32LQFP Tray
R7FS1JA783A01CFJ#UA0 R7FS1JA783A01CFJ#UA0 Hoja de datos Microcontroladores ARM - MCU SYNERGY MCU PLATFORM S1JA 256K 32LQFP LQFP-32 CAN, I2C, SPI, UART, USB 2.0 Tray 2 Channel, 5 Channel
