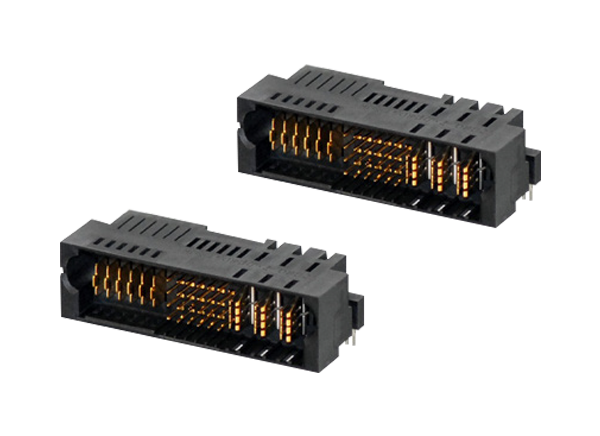

TE Connectivity MULTI-BEAM Plus Power Connectors

TE Connectivity’s (TE) MULTI-BEAM Plus Power Connectors provide a high current per power contact with a maximum of 140A per contact or 100A per contact with four adjacent contacts. These connectors are manufactured with thicker material and use a high-density tail to carry higher current. This higher power and signal density offers space savings and reduces power consumption, while the scalable and modular design allows flexibility in configuration and PCB design. TE's MULTI-BEAM Plus Power Connectors are suitable for data centers, telecommunications, industrial automation, and power systems.

Features

High current per power contact at a maximum of 100A per four pins
High power and signal density save space and reduce power consumption

Scalable and flexible design
Made of high-conductivity copper alloy and high-temperature resin with RoHS compliance

Applications

Data centers
Telecommunications

Industrial automation
Power systems

Specifications

Current rating
- 100A max per contact with four adjacent power contacts
- 140A max per contact
250 max mating cycles
50G mechanical shock per EIA-364 standard
4.9G, 20Hz to 500Hz vibration
-40°C to +125°C operating temperature range

Low mating force
- 7.12N max per power contact
- 1.0N max per low-power contact
Insertion force into PCB
- Insertion force per eye-of-needle (EON) is 50N max.
PCB thickness
- Press-fit type: 1.5mm min
- Solder type: Tail length – 0.4mm max
