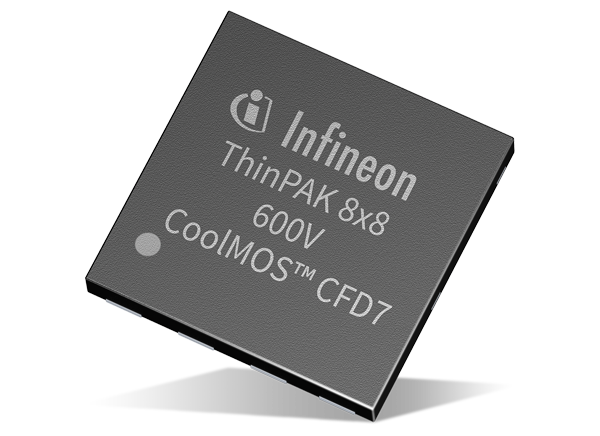

Infineon Technologies CFD7 CoolMOS™ MOSFETs
Infineon Technologies CFD7 CoolMOS™ MOSFETs are ideal for resonant high power topologies and feature high voltage superjunction MOSFET technology. The MOSFETs have an integrated fast body diode and completes the CoolMOS 7 series. Typical high power switch-mode power supply (SMPS) applications include server, telecom, and EV charging stations.
Features
- Ultrafast body diode
- Best-in-class reverse recovery charge
- Improved reverse diode dv/dt and diF/dt ruggedness
- Lowest FOM RDS(on)*Qg and EOSS
- Leading RDS(on)/package combinations
- Leading hard commutation ruggedness
- High reliability for resonant topologies
- High efficiency in target applications
- Enabling increased power density solutions
Applications
- Server
- Telecom
- EV charging
- SMPS
- PC power

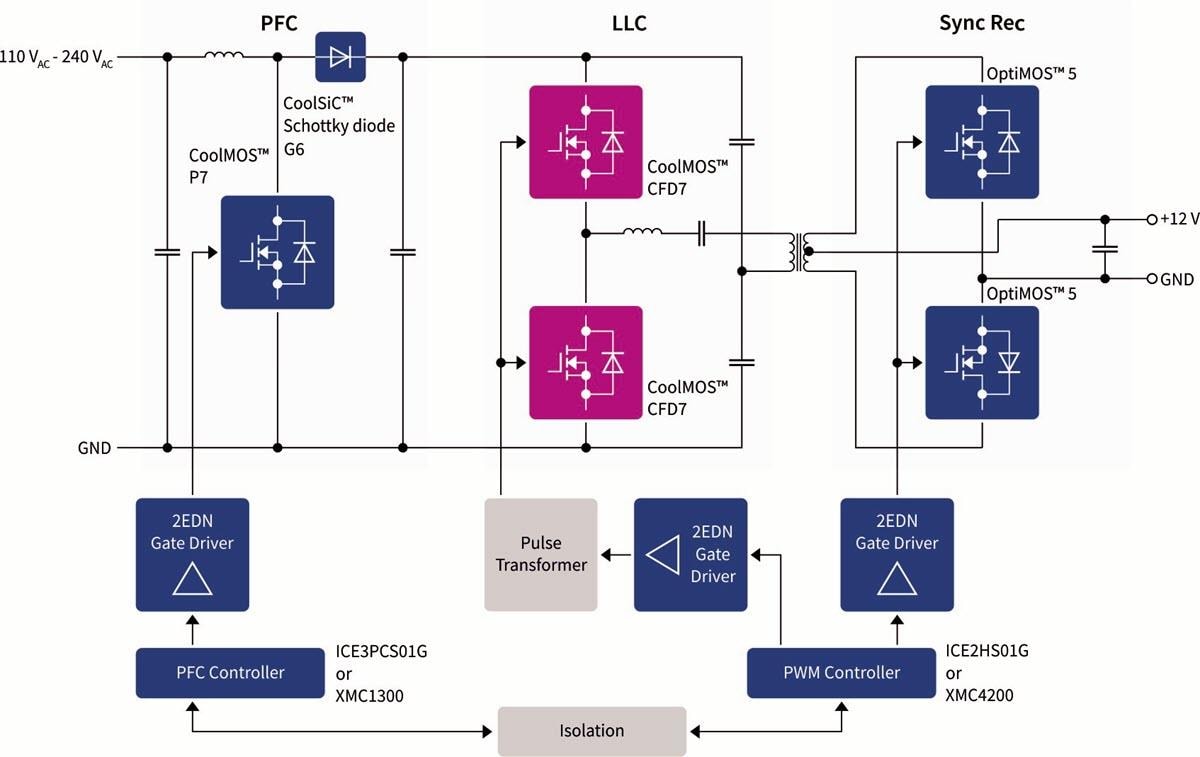

Block Diagram
Development Tools
Infineon Technologies EVAL_3K3W_TP_PFC_CC CoolMOS™ CCM Totem Pole PFC
Bridgeless totem pole PFM enabled by CoolMOS™ power MOSFETs and an XMC™ Microcontroller.
Infineon Technologies EVAL_100W_DRIVE_CFD2 Motor Drive Evaluation Board
Offers a sensorless synch rectification BLDC/PMSM control algorithm reducing hard-commutation.
Infineon Technologies EVAL_1K4W_ZVS_FB_CFD7 Evaluation Board
Includes MOSFETs, controllers, and drivers in a high-performance complete Infineon solution.
Infineon Technologies EVAL_2KW_ZVS_FB_CFD7 Evaluation Board
A platform for the ZVS DC-DC converter for telecom rectifiers.
Infineon Technologies EVAL_800W_ZVS_FB_CFD7 Evaluation Board
A high-performance, 800W, DC-DC ZVS full-bridge solution for server and industrial SMPS systems.
Infineon Technologies 1EDN Driver Evaluation Kits
Designed for EiceDRIVER™ single-channel non-isolated gate driver IC with truly differential inputs.
Infineon Technologies 2EDN Driver Evaluation Kits
A test platform for evaluating the dual-channel non-isolated gate driver IC EiceDRIVER™.
Infineon Technologies Placa de evaluación EVAL_3K3W_BIDI_PSFB
Una solución completa para el convertidor CC-CC bidireccional de 3300 W.
Infineon Technologies 1400W PSFB SMD Solution
Offers a complete solution with the 600V CoolMOS™ CFD7 Super-Junction MOSFET and XMC™ MCU.
Infineon Technologies 3kW 50V Server & Data Center PSU Reference Design
Complete power supply reference design targeting the Open Compute V3 rectifier specifications.
